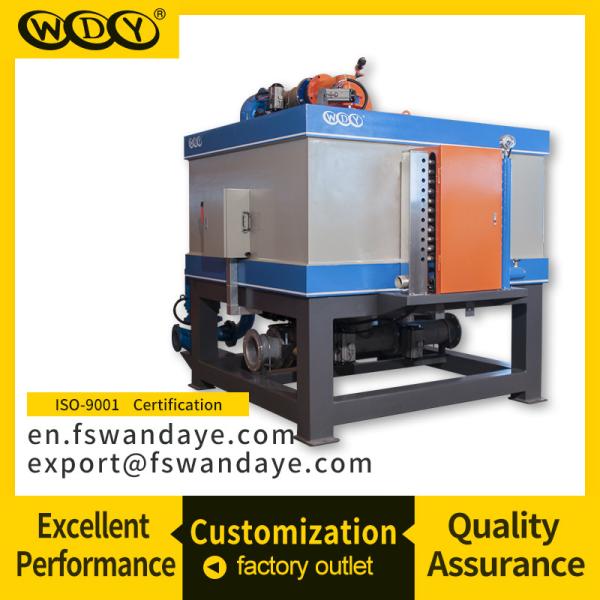

Wet High Intensity Magnetic Separation Equipment For Kaolin

  • 1
  • 2

Brand Name : WANDAYE

Model Number : WS-1000-V

Certification : ISO9001:2008

Place of Origin : Foshan.China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50 SETS

Delivery Time : Within 25 days after the advance payment is made

Packaging Details : Film and wooden case

Model : WS-1000-V

Magnetic field strength(T) : 3

Input voltage(ACV) : 380

Maximum output current(DCA) : 2500

Maxiumum coil power(KW) : 0-150(adjustive)

Insulation method : E

Capacity(m³/h) : 50-90

Weight(KG) : 26000

Dimension(L*W*H)MM : 3052*2185*2814

Contact Now

Kaolin Feldspar Ceramic Slurry Quartz Wet High Efficent Intelligence Iron Remover Wet High Intensity Magnetic Separator


Company profile


Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .

Wet High Intensity Magnetic Separation Equipment For Kaolin


Product characteristic

A new model of separator with high efficiency.
High intensity magnetic field.
The temperature inside of the machine rises slowly.
Running long time and the magnetic field intensity are not easy to decrease.

Technology parameter

Model

1000

750

WS500T2 - I

W500SL

X500

Magnetic field strength(T)

5

5

5

3

5

Input voltage(ACV)

380

380

380

380

380

Maximum output current(DCA)

2500

1400

1400

1400

1400

Maxiumum coil power(KW)

180

75

75

30

45

Insulation method

E

E

E

E

E

Cooling method

Water cooling

Water cooling

Water cooling

Water cooling

Water cooling

Magnetic lumen diameter(mm)

1000

750

530

530

530

Pipe size(mm)

200

150

100

100

100

yield(m³/h)

50-90

30-70

30-60

20-50

20-50

demension(mm)

3052*2185*2814

2600*2000*3000

2200*1700*3000

1400*1700*2345

2000*1600*2800

Main machine weight(KG)

26000

16350

14100

6500

9580

Usage

Applicable for 40-400 mesh feedstock of iron elimination


Operation process

After a few minutes later(you can set the time whatever you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator, then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope

Non-metallic mineral: It is used for purifying the non-metallic mineral such as quartz, feldspar and kaolin.
Ferrous metals mineral: hematite, martite, limonite, siderite, chromite, polianite.
Non-ferrous metals mineral: used for separating wolframite from pyrope
Rare earth ore: recycle tantalum-niobium ores and monazite.
other industries: iron ore, effluent of power station disposal, disposal of contaminated chemical raw material.


client producing photo as follow

Wet High Intensity Magnetic Separation Equipment For Kaolin

Wet High Intensity Magnetic Separation Equipment For Kaolin

Wet High Intensity Magnetic Separation Equipment For Kaolin
